Casting of Steel Suspension Frame Hanger for the Trucking Industry
(Click on thumbnail to enlarge)
Casting of Steel Suspension Frame Hanger for the Trucking Industry

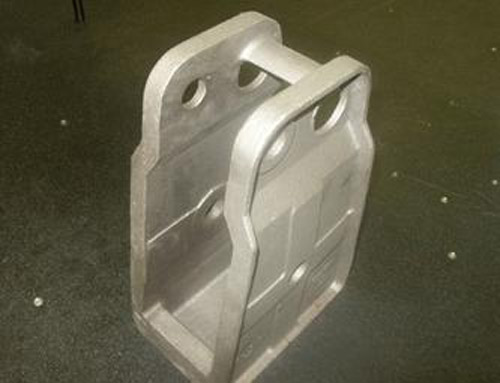

Recently, a client from the trucking industry requested that Bral Corporation use their premium casting and machining operations to manufacture a series of steel frame hangers used within a truck suspension application. Based off a customer supplied, 2D CAD drawing, we employed our advanced lost wax investment casting process, casting each part to measure 8 inches in length, 12 inches in width, and 16 inches in height. The hangers also weigh 30 pounds each.
After the parts were cast, we performed a series of magnetic particle inspections to guarantee the quality of all components.
After we were ensured that all parts met with our client's precise product specifications, we then delivered all finished components to our client's facility in Missouri. Exceeding our customer's expectations for quality, we now produce 10,000 frame hangers annually for this trucking industry client.
Casting of Steel Suspension Frame Hanger Project Highlights
Product Description |
|
This Frame Hanger is used within a truck suspension application. |
|
Capabilities Applied/Processes |
|
Casting
- Lost wax Investment steel casting
|
|
|
|
Overall Part Dimensions |
|
Length: 8"
Width: 12"
|
Height: 16" |
|
|
Material Used |
|
Steel
|
|
In process testing performed |
|
Magnetic Particle Inspection |
|
Estimated Part Weight |
|
30 lbs |
|
Industry for Use |
|
Trucking |
|
Quantity |
|
10,000 Pieces Yearly |
|
Delivery Location |
|
Missouri |
|
Standards Met |
|
Customer supplied print, 2D CAD Drawing |
|
Product Name |
|
Truck Suspension Frame Hanger |
